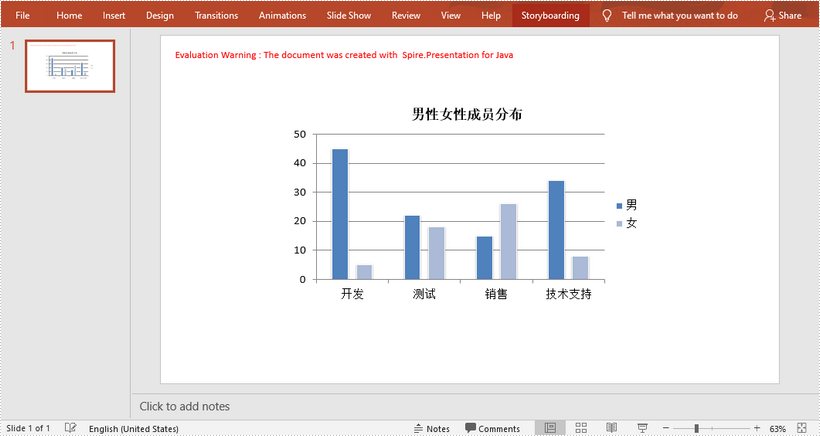

本文介绍如何根据现有excel数据在powerpoint中创建图表。该方案需引用spire.office.jar，请下载最新版本并在您的项目中添加为依赖。

excel文档截图：

import com.spire.presentation.fileformat;
import com.spire.presentation.presentation;
import com.spire.presentation.slidesizetype;
import com.spire.presentation.charts.chartstyle;
import com.spire.presentation.charts.charttype;
import com.spire.presentation.charts.ichart;
import com.spire.xls.workbook;
import com.spire.xls.worksheet;
import java.awt.geom.rectangle2d;
public class createchartfromexceldata {
    public static void main(string[] args) throws exception {
        //创建presentation对象
        presentation presentation = new presentation();
        presentation.getslidesize().settype(slidesizetype.screen_16_x_9);
        //添加柱状图
        rectangle2d rect = new rectangle2d.float(200, 100, 550, 320);
        ichart chart = presentation.getslides().get(0).getshapes().appendchart(charttype.column_clustered,rect);
        //清除默认图表数据
        chart.getchartdata().clear(0,0,5,5 );
        //创建workbook对象并加载excel文档
        workbook wb = new workbook();
        wb.loadfromfile("c:\\users\\administrator\\desktop\\data.xlsx");
        //获取第一个工作表
        worksheet sheet = wb.getworksheets().get(0);
        //将excel中的数据导入图表数据表
        for (int r = 0; r < sheet.getallocatedrange().getrowcount(); r  )
        {
            for (int c = 0; c < sheet.getallocatedrange().getcolumncount(); c  )
            {
                chart.getchartdata().get(r,c).setvalue(sheet.getcellrange(r 1, c 1).getvalue2());
            }
        }
        //添加标题
        chart.getcharttitle().gettextproperties().settext("男性女性成员分布");
        chart.getcharttitle().gettextproperties().iscentered(true);
        chart.getcharttitle().setheight(25f);
        chart.hastitle(true);
        //设置系列标签
        chart.getseries().setserieslabel(chart.getchartdata().get("b1","c1"));
        //设置分类标签
        chart.getcategories().setcategorylabels(chart.getchartdata().get("a2","a5"));
        //设置系列数据
        chart.getseries().get(0).setvalues(chart.getchartdata().get("b2","b5"));
        chart.getseries().get(1).setvalues(chart.getchartdata().get("c2", "c5"));
        //应用内置样式
        chart.setchartstyle(chartstyle.style_11);
        //设置系列重叠
        chart.setoverlap(-50);
        //设置分类间距
        chart.setgapwidth(200);
        //保存文档
        presentation.savetofile("output/chart-cn.pptx", fileformat.pptx_2013);
    }
}
